If you’re passionate about IT and electronics, like being up to date on technology and don’t miss even the slightest details, buy Cabinet Switch TP-Link TL-SG1016D at an unbeatable price.

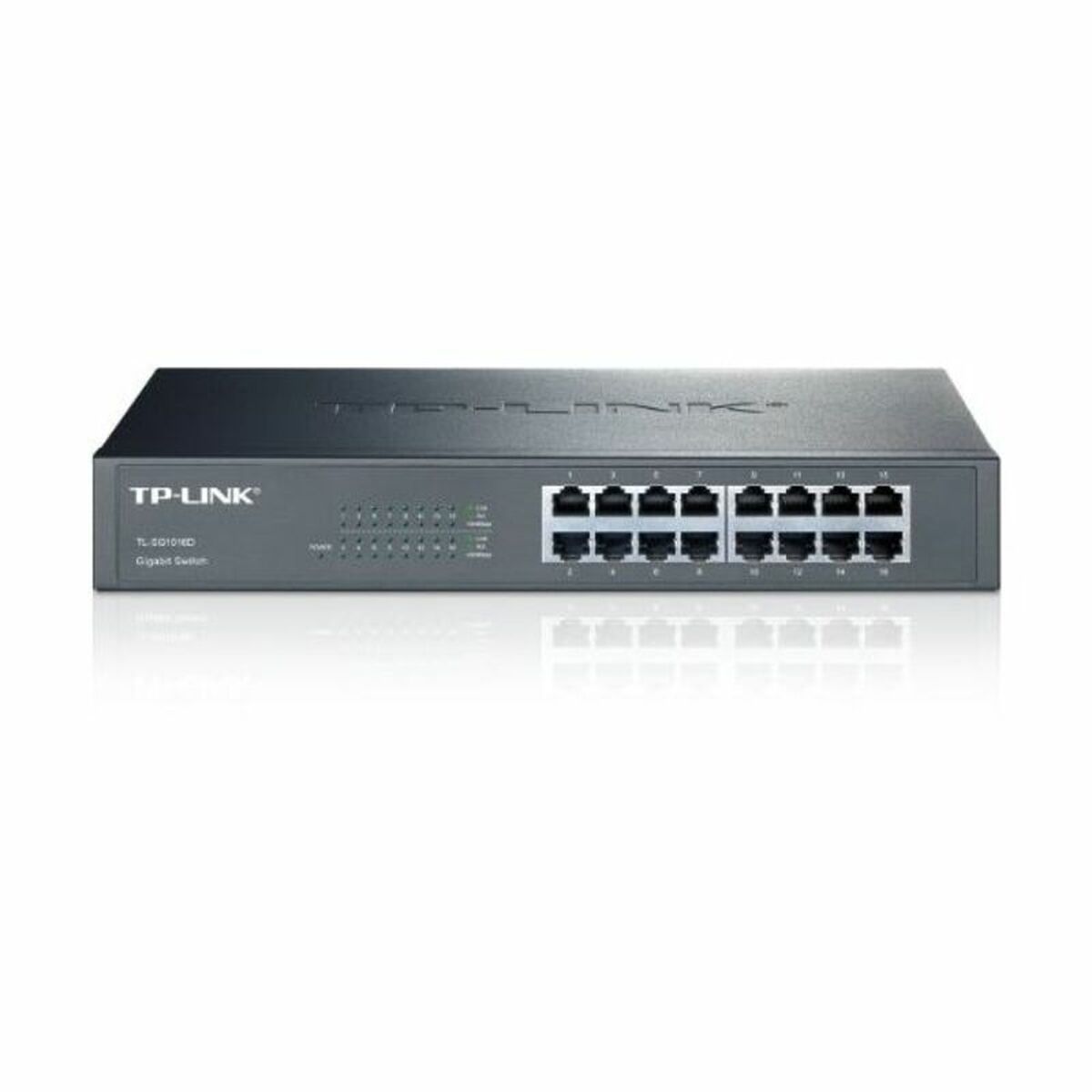

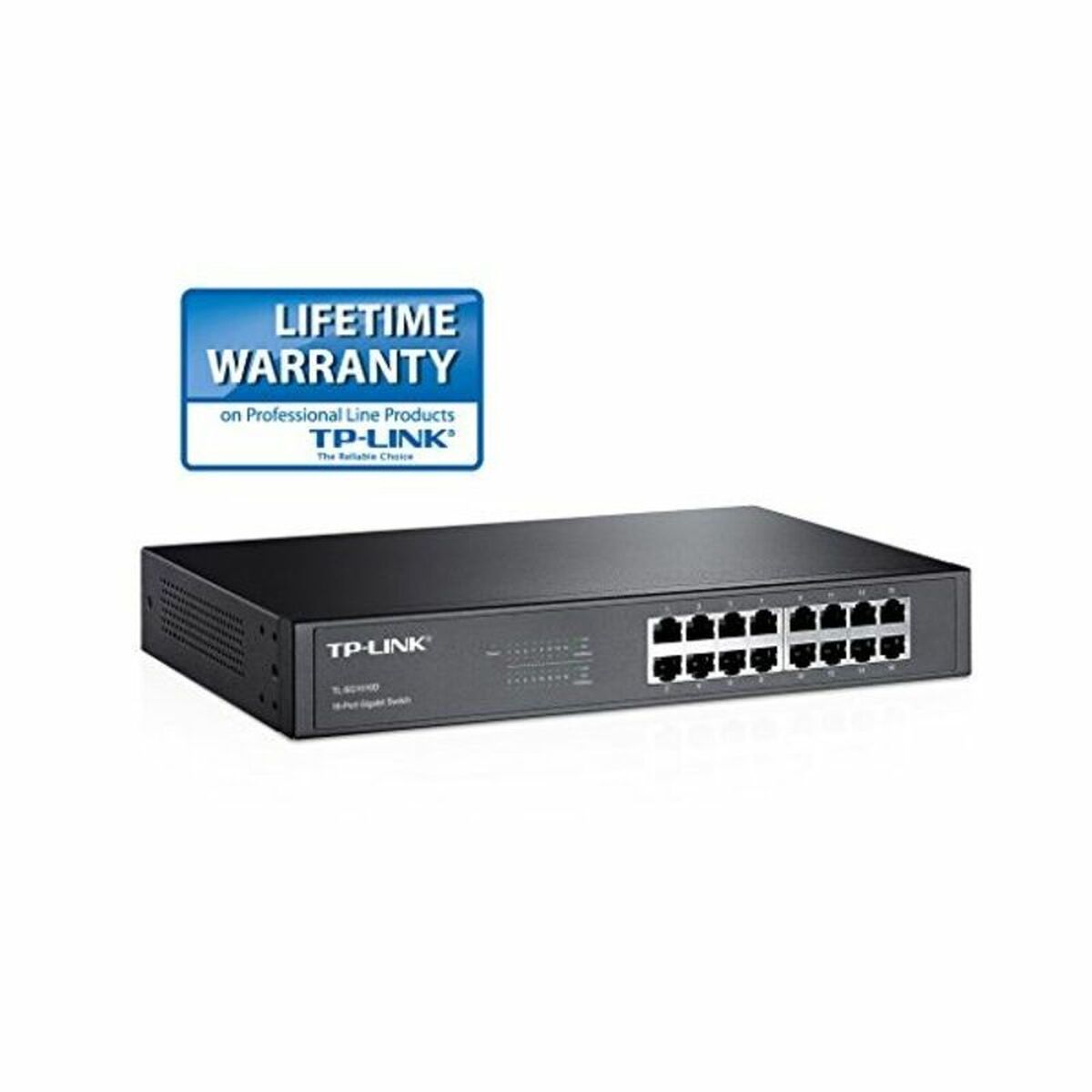

The cabinet switch TP-Link TL-SG1016D is a desktop or rack-mount switch designed for professional networks that need stable, high-performance connectivity, with 16 Gigabit Ethernet RJ45 ports (10/100/1000) to connect multiple devices such as PCs, servers, network printers or storage units, with enough bandwidth for intensive data transfers. It is an unmanaged switch, so it requires no configuration: just connect it to the mains power (AC 100240 V, 5060 Hz) using the included AC cable and EU plug and it will start working, making it especially suitable for small and medium-sized businesses or installations looking for simplicity. Its 32 Gbit/s switching capacity and full duplex operation ensure smooth traffic even when several ports are active at the same time, while the MAC table of up to 8000 entries allows you to handle a large number of devices on the network. It supports IEEE 802.3ab, 802.3u and 802.3x standards, providing auto-negotiation of speed and flow control to optimize performance and reduce collisions in modern Ethernet networks. The front LED status indicators make it easy to quickly monitor the status of each port and power, helping with basic troubleshooting without additional tools. This switch supports rack cabinet or desktop installation, with a stackable chassis in white, black and grey, and an approximate weight between 1.1 and 1.39 kg, offering robust construction suitable for professional environments. It operates within a wide range of temperature and humidity (between -40 C and 70 C for storage and 10%90% relative humidity), providing reliability in technical rooms and offices with different environmental conditions. It is compatible with PC equipment and Windows systems, includes internal AC power and comes with a user manual for quick start-up. Overall, the TP-Link TL-SG1016D is a reliable, straightforward Gigabit solution to expand wired network infrastructure in workplaces that require stability and room for growth.

• Connections:
  • RJ45
  • Ethernet LAN
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • CA cable
  • AC 100-240 V / 50-60 Hz
  • Iincluded
  • CA
• Colour:
  • Black
  • White
  • Grey
• Voltage:
  • 100-240 V
  • 220 V
  • 240 V
  • 100 – 240 V
• Frequency:
  • 50-60 Hz
  • 50 Hz
• Characteristics:
  • With cable
  • LED in operation indicator
• Platform: Windows
• Ports: 16
• AC input frequency: 50-60 Hz
• Type: Stackable
• Approx. weight: 1,1 kg
• Weight: 1,39 Kg
• Working range for humidity: 10 % – 90 %
• Compatible: PC
• Approx. temperature: -40 / 70
• Includes: User manual

What This Product DoesThe TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EUS RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceAll 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. Its a perfect choice to update your network to Gigabit while protecting your previous investment properly.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• Power connector: DC-in jack
• Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Supported data transfer rates: 10/100 Mbps
• Forwarding rate: 23.8 Mpps
• Store-and-forward: Y
• Maximum data transfer rate: 1 Gbit/s
• Jumbo frames support: Y
• Jumbo frames: 10000
• Supported network protocols: CSMA/CD, TCP/IP
• Rack mounting: Y
• Stackable: Y
• Product colour: Black
• LED indicators: Y
• Certification: FCC, CE, RoHs
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• Power consumption (max): 9.26 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 – 40 C
• Storage temperature (T-T): -40 – 70 C
• Operating relative humidity (H-H): 10 – 90%
• Storage relative humidity (H-H): 5 – 90%
• Operating temperature (T-T): 32 – 104 F
• Heat dissipation: 31.6 BTU/h
• Width: 294 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Package type: Box
• Package width: 400 mm
• Package depth: 250 mm
• Package height: 80 mm
• Dimensions (WxDxH): 294 x 180 x 44 mm
• Connectivity technology: Wired
• Bandwidth: 32 Gbit/s
• Power requirements: 100 – 240V, 50/60Hz
• Power supply type: AC
• Networking features: Gigabit Ethernet
• Connectivity LEDs: Y
