If you’re passionate about IT and electronics, like being up to date on technology and don’t miss even the slightest details, buy PoE Injector UBIQUITI POE-24-7W-G-WH at an unbeatable price.

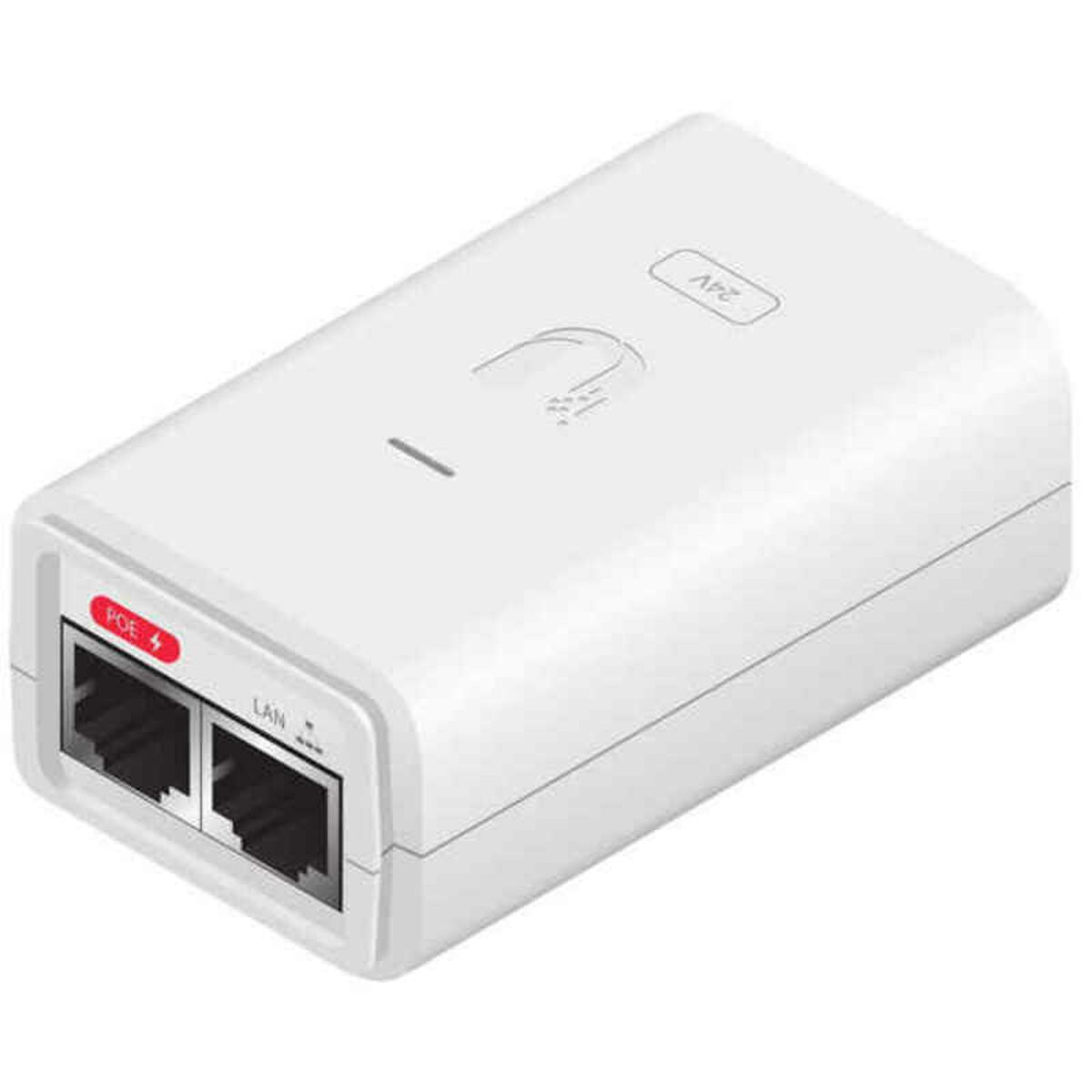

The PoE injector POE-24-7W-G-WH by Ubiquiti is a device designed to supply power and data through a single Ethernet cable, simplifying the installation and management of network equipment without needing an additional power source. This injector provides an output of 24 VDC at 0.3 A, delivering a nominal power of 7W, suitable for powering devices such as IP cameras, wireless access points, or VoIP phones requiring this voltage. Its white color and compact design (72 x 45 x 33 mm) with a lightweight of 72.1 grams allow discreet integration in various environments, from offices to industrial settings. The POE-24-7W-G-WH features a wired connection via a shielded gigabit RJ45 port that enables efficient data and power transmission, compatible with high-speed networks. The AC power supply operates within a wide range of 100 to 240 V AC at 50/60 Hz, with efficiency above 80%, ensuring optimized energy consumption. Key technical features include remote reset via a physical button, advanced surge protection in differential and common modes, and international compliance certifications (IEC 60950-1, UL60950-1, EN55022, EN55024, and FCC Class B) confirming its reliability and safety. Its robust construction includes protection against surges up to 1500 A and isolation between data and power, allowing stable operation even under demanding conditions. The recommended operating temperature ranges from 0 to 40 C, with resistance to relative humidity up to 95% non-condensing, ensuring continuous performance in variable environments. It includes a standard IEC-320 C6 AC connector with grounding cable, compatible with regional standards, facilitating global use. Overall, this PoE injector offers an efficient and safe solution to power and connect 24 V network devices, with a compact design and technical features that guarantee compatibility, protection, and stability in professional and home installations.
- Product with plug: Yes
- Type of plug: Plug EU
- Connections:
- RJ45 x 1
- RJ45
- Type: Cabling
- Speed:
- 1 Gbps
- 1000 Mbps
- Colour: White
- Characteristics: Wall mounting
- Voltage:
- 24 V
- 100 – 240 V
- Interface: Gigabit Ethernet
- Nominal current: 0,3 A
- Frequency: 50 – 60 Hz
- Power supply: CC
Device ProtectionPoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.Convenient Wall-MountingThe 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.Seamless airGateway CompatibilityThe 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations.
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 1000 Mbit/s
- Power over Ethernet (PoE): Y
- Wall mountable: Y
- Product colour: White
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Y
- Power over Ethernet (PoE) voltage: 24 V
- AC adapter input voltage: 100 – 240 V
- AC adapter frequency: 50/60 Hz
- Input current: 0.3 A
- Output current: 0.3 A
- Operating temperature (T-T): 0 – 40 C
- Operating temperature (T-T): 32 – 104 F
- Operating relative humidity (H-H): 35 – 95%
- Storage temperature (T-T): -30 – 70 C
- Weight: 72.1 g
- Dimensions (WxDxH): 72 x 45 x 33 mm
- Number of products included: 1 pc(s)
